Product description:

A high-strength illustrates, belongs to the field of automotive accessories, including teeth plate, plate, small tooth plate, drive mechanism and a closed loop, the features are: tooth disc seat is not the first shaft hole, first must have a convex and concave cavity, the concave convex cavity with gear plate positioning convex platform, tooth plate is equipped with a second shaft hole, for cavity and a second positioning convex sets, for cavity is formed all round the outside of the inner ring and outer ring, inner ring in convex restrictions on a piece of, constitute a toothed ring on the outer ring; The driving mechanism includes locking block, CAM plate, center shaft and spring; The small toothed plate has at least four, which is placed in the cavity of the tooth disc and the cavity of the tooth disc and can slide in the slide. The closed ring is enclosed in the outer edge of the tooth disk and the disc. Advantages: can guarantee the consistency of multiple small tooth plate movements; The lock is reliable; Easy to unlock and flexible; High strength; Small gap. Free gear, can quickly change the Angle of the adjuster; Small parts, easy assembly, convenient processing, low cost; The scope of application is wide.

Product features:

This is a half tooth. The adjustment Angle is small, and the locking method is four small teeth, with two small teeth with the limit convex platform, which can effectively guarantee the scheduling of the gap. This structure lock is reliable and stable.

Connection mode: carbon dioxide gas shielded welding.

性能指标：

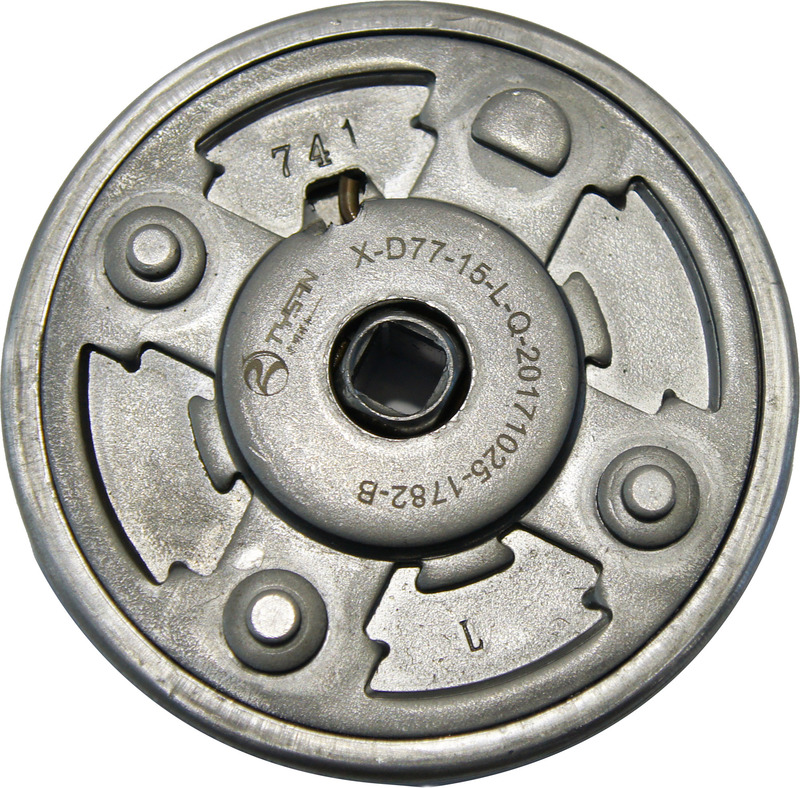

产品展示：
